Strapngo Load Restraint System
Strapngo Standard 50mm & 75mm System
Designed to carry a 50mm single 2500kg ratchet with a hook and keeper.
Designed to carry a 50mm single 2500kg ratchet with a hook and keeper. Ideal for general freight and with very high loads where straps cannot be thrown through small gaps. Suited for those loads or freight that are mostly loaded and unloaded from the same side of the unit. This option can be installed under mezzanine floors.
Also available in a 75mm single 5000kg ratchet with a hook and keeper. Good option when transporting larger machinery or timber that require extra security.
Strapngo Double Ratchet System
As the name suggests, this system is designed to carry 2 x 2500kg ratchets.
As the name suggests, this system is designed to carry 2 x 2500kg ratchets. There is 1 x ratchet on either side of the strap/unit. This is an ideal set up when you need to load and unload multiple times from either side of the unit, and only requires opening one curtain to remove or load the freight. This option can be installed under mezzanine floors.
Strapngo Twitch Chain System
A robust system specifically designed for carrying timber in curtainsiders.
A robust system specifically designed for carrying timber in curtainsiders. Allows for a more efficient restraining of timber, this means drivers do not have to throw twitch chains, protecting their shoulders, reducing the chance of injury and time off from the job.
NOTE: With Options 1 & 2, straps can be cut according to the height of the truck floor using a hot knife to prevent fraying to the strap. The benefit of cutting straps is to allow the forklift operator to load freight onto the truck without the straps being wedged underneath freight. Once the truck is loaded the driver can simply pull down the straps using the extendable pole which is provided with the system
Strapngo Load Restraint Product / Accessories
Load Restraint – Tie Downs & Accessories
1500kg Standard Ratchet Tie Down 38mm x 6M
AS/NZ 4380 Standards
$18.85 +gst
2500kg Standard Ratchet Tie Down 50mm x 9M
AS/NZ 4380 Standards
$26.70 +gst
2500kg Reverse Short Handle Ratchet Tie Down 50mm x 9M
AS/NZ 4380 Standards
$38.20 +gst
2500kg Reverse Long Handle Ratchet Tie Down 50mm x 9M
AS/NZ 4380 Standards
$42.10 +gst
5000kg Standard Ratchet Tie Down 75mm x 9M
AS/NZ 4380 Standards
$114.00 +gst
2500kg Mezzanine Floor Restraint Set 50mm x 3M
AS/NZ 4380 Standards
$90.00 +gst
Mezzanine Floor Block
L400mm x W50mm x H30mm
Mezzanine Floor Block
L400mm x W50mm x H40mm
2500kg Tie Down Strap
50mm x 9M with H&K
+ 2 Sleeves
AS/NZ 4380 Standards
$18.00 +gst
2500kg Double Ratchet Strap 50mm x 9M + 2 Sleeves
AS/NZ 4380 Standards
$15.00 +gst
2500kg Tie Down Strap 50mm webbing with H&K + 2 Sleeves
Made to Length / Order
AS/NZ 4380 Standards
$POA +gst
Load Restraint – Chain & Rigging
G70 Twitch Chain 7.3mm x 9M
AS/NZ 4380 Standards
$93.00 +gst
G70 Twitch Chain 7.3mm x 9M w/Winged Grab Hooks
AS/NZ 4380 Standards
$110.00 +gst
G70 Twitch Chain 10mm x continuous length (cut to order)
AS/NZ 4380 Standards
$22.00 +gst (per meter)

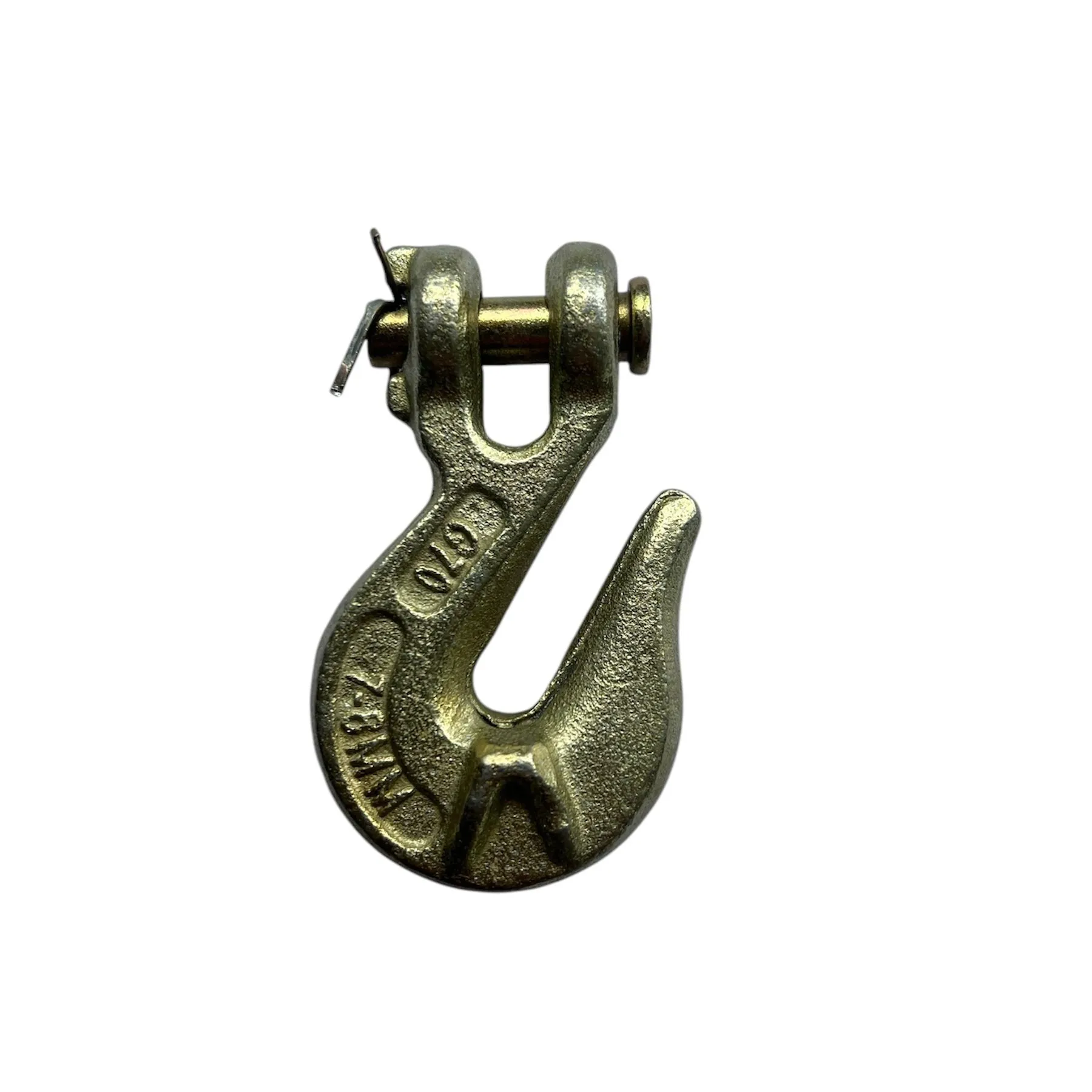

G70 Twitch Chain Winged Grab Hook 7-8mm
AS/NZ 4380 Standards
$8.50 +gst
Recoilless Lever Action Twitch Chain Binder 7-8mm
AS/NZ 4380 Standards
$63.00 +gst
Maxibinder / Ausbinder Twitch Chain Binder 7-8mm
AS/NZ 4380 Standards
$220.00 +gst
G80 Connecting Link / Hammer Lock 6mm
AS/NZ 4380 Standards
$11.70 +gst
G80 Connecting Link / Hammer Lock 7-8mm
AS/NZ 4380 Standards
$13.00 +gst
G80 Connecting Link / Hammer Lock 10mm
AS/NZ 4380 Standards
$16.40 +gst
Load Restraint – Corner Board / Protector / Poles
Nylon Corner Protector W135mm x H100mm
Steel Chain Corner Protector W145mm x H100mm
Steel / Rubber Chain Corner Protector W160mm x H110mm
Plastic Pallet Corner Board Protector 1040mm
Corner Board Placement Pole 1.2M-2.4M
STRAPNGO Load Restraint Extension Pole & Hook 1.2M-2.4M
System Information
- Strapngo NZ Ltd is a proudly New Zealand owned and operated.
- The team at Strapngo are committed to 100% customer satisfaction.
- Our systems are designed with materials to avoid rust and corrosion.
- Each Strapngo system is designed to cover 2 pallets across a unit. A 10 pallet truck will require 5 systems, a 14 pallet truck will require 7 systems and a 22 pallet trailer will require 11 systems.
- Additional Strapngo systems can be installed, to accommodate for smaller and/or odd shaped freight.
- Depending on use, different combination can also be installed, standard and chain system together.
- The Strapngo system can be installed into either new builds or retro fitted to existing units (available & shipped nationwide).
- We stock a full product supply of all Strapngo componentry (shipped nationwide).
Warranty
We offer a 12 month warranty on all parts and labour (excludes retractable pole and damage due to negligence or human error)
